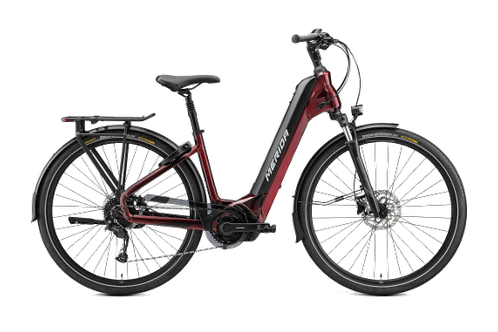

Merida eSpresso City 400 EQ eBike

• One of the lowest widest step throughs in the market
• Shimano Steps 6100 60Nm motor with 504Wh battery
• Shimano 9 speed
• Hydraulic disc brakes
• Mudguards, kickstand, rack, lock and lights
• Suspension seatpost and adjustable stem

Low step-through eBike with neatly integrated battery. Fully equipped with mudguards, rack, kickstand, lock and lights. Powered by a Shimano Steps 6100 60Nm motor with powerful 504W battery.The eSpresso City has one of the lowest, widest step throughs available. It’s the perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop. Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light. Choose between frames such as this with internally mounted batteries or a more affordable, semi-integrated design. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel. A tapered head tube delivers confidence inspiring handling. All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there’s plenty of capacity for you and your luggage. Strong but controllable hydraulic disc brakes help you stop with ease.

FRAME

• City Lite II – Hydroformed 6066 triple butted aluminium. 135 x 9mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards

• Shimano Steps E6100; 60Nm

• Shimano E8035; 504Wh internal battery

• 504Wh

• Shimano SC-E5000

• Shimano EC-E6002; 2A Charging current

• Merida Power Cap button

• Shimano SC-E5000

• Suntour NEX E25; Coil; 63mm travel. Max. tyre size: 700 x 52c

• 9

• Shimano Alivio M3100

• Shimano Alivio M3100; SGS

• Part of Shimano Steps motor

• KMC e9S

• Shimano CRE61; 38 tooth chainring with Shimano FC-E6100; 170mm length crank and chainguard

• Shimano HG200; 11-36 teeth; 9 speed

• Shimano MT200

• Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor

• Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor

• Merida Expert TK

• Merida Expert; aluminium; 640mm wide; 35mm rise

• Merida Expert; aluminium; 31.8mm diameter; adjustable – Stem length: 65 mm (XS/S/M), 90mm (L/XL)

• Merida-8252

• VP Components – VPE-891

• Merida Expert TK; V-mount

• JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel

• 700c

• Merida Comp TK; 20mm inner rim width; aluminium

• Black stainless

• Shimano TX505; 100x9mm; 32 spokes; Center lock

• Shimano TX505; 135x9mm; 36 spokes; Center lock

• Continental Ride Cruiser; 622-50; wire bead with reflective strip

• Continental Ride Cruiser; 622-50; wire bead with reflective strip

• Red/Black

• 2023

• Hermans H-Black MR4 E, LED front light – 120 Lumens

• Spanninga Commuter Glow XE integrated rear light

• Complete with: Kickstand, Abus frame lock, chainguard, mudguards, carrier with spring clip and front / rear lights. Shimano Satellite charging port; EW-CP100
