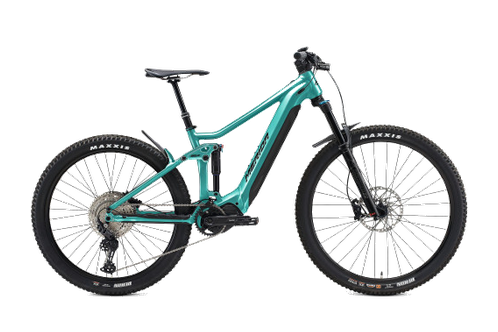

Merida eOne-Forty 500 eBike
– Steeper seat angle and slightly steeper head angle – Agile and playful; a highly competent climber that’s perfect for all day riding.
RRP
Confirm price and options with the shop
Checking availability…
Ask us about this bike
Collect from Wallasey, built and set up for you. How it works
Your bike. Your way to buy.Explore finance, deposits & Cycle to Work.Returns & support
We’re here to help with your purchase. Read our returns and warranty information.
GET TO KNOW YOUR NEXT RIDE
Made for the way you ride.
– Steeper seat angle and slightly steeper head angle – Agile and playful; a highly competent climber that’s perfect for all day riding.
Specification, at a glance.
Electric system
| Motor | Shimano Steps EP8; 85Nm |
|---|---|
| Battery | Shimano E8036; 630Wh internal battery |
| Display | Shimano SC-E5003A |
| Charger | Shimano EC-E6002; 2A charging current |
Frame & suspension
| Frame | Lite III – Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5″ x 2.8″. |
|---|---|
| Rear shock | Suntour RS-Edge-TR-LO-R8-M6; lockout |
| Fork | Marzocchi Z2 eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29″ x 2.6″ |
Gears & drivetrain
| Drivetrain | 11 |
|---|---|
| Shifters | Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever |
| Rear derailleur | Shimano Deore RDM5100 11 |
| Bottom bracket | Part of Shimano Steps motor |
| Chain | KMC e11S EPT |
| Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank |
| Cassette | Shimano M5100; 11-51 teeth; 11 speed |
| Pedals | VP Components – VPE-537 |
Braking
| Brake levers | Shimano M4204 |
|---|---|
| Front brake | Shimano M4204 4 piston hydraulic disc brake caliper with Shimano RT30 203 mm rotor |
| Rear brake | Shimano M4204 4 piston hydraulic disc brake caliper with Shimano RTEM300 203 mm rotor |
| Brakes | Shimano 4 piston hydraulic disc brakes |
Wheels & tyres
| Wheel size | 29″ / 27.5″ |
|---|---|
| Rims | Merida Comp TR; 29mm inner rim width; Aluminium |
| Spokes | Black stainless |
| Front hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear hub | Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Front tyre | Maxxis Rekon; 29″ x 2.4″; wire bead; dual |
| Rear tyre | Maxxis Rekon; 27.5″ x 2.6″; wire bead; EXO |
Cockpit & contact points
| Grips | Merida Expert EC |
|---|---|
| Handlebar | Merida Expert eTR; 780mm wide; 20mm rise |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise – stem length: 50mm all sizes; GoPro & Supernova mount |
| Headset | Merida-8152 |
| Saddle | Merida Comp SL with V-mount |
| Seatpost | Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL) |
Details & equipment
| Colour | Teal/Black |
|---|---|
| Model year | 2023 |
| Front light | Lezyne eBike Power STVZO E115 front light |
| Rear light | USB REAR Light CG-214RG |
| Other | Complete with: mini fenders and front / rear lights. Shimano Satellite charging port; EW-CP100 |
More about this model
- Shimano Steps EP8 85Nm motor
- Shimano 630Wh battery
- Marzocchi Z2 Air fork and SR Suntour air shock
- Shimano Deore 11 speed
- Shimano Boost hubs
- Shimano 4 piston hydraulic disc brakes
Specification
Frame
- Lite III – Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5″ x 2.8″.
Motor
- Shimano Steps EP8; 85Nm
Battery
- Shimano E8036; 630Wh internal battery
Battery Capacity
- 630Wh
eBike Display
- Shimano SC-E5003A
Charger
- Shimano EC-E6002; 2A charging current
Power Button
- Merida Power Cap button
Mode Switch
- Shimano SC-E5003A
Shock
- Suntour RS-Edge-TR-LO-R8-M6; lockout
Fork
- Marzocchi Z2 eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29″ x 2.6″
Gears
- 11
Shifters
- Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever
Rear Derailleur
- Shimano Deore RDM5100 11
Bottom Bracket
- Part of Shimano Steps motor
Chain
- KMC e11S EPT
Chainset
- Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank
Cassette
- Shimano M5100; 11-51 teeth; 11 speed
Brake Lever
- Shimano M4204
Front Brake
- Shimano M4204 4 piston hydraulic disc brake caliper with Shimano RT30 203 mm rotor
Rear Brake
- Shimano M4204 4 piston hydraulic disc brake caliper with Shimano RTEM300 203 mm rotor
Grip
- Merida Expert EC
Handlebar
- Merida Expert eTR; 780mm wide; 20mm rise
Stem
- Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise – stem length: 50mm all sizes; GoPro & Supernova mount
Head Set
- Merida-8152
Pedal
- VP Components – VPE-537
Saddle
- Merida Comp SL with V-mount
Seat Post
- Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL)
Wheel Size
- 29″ / 27.5″
Rims
- Merida Comp TR; 29mm inner rim width; Aluminium
Spokes
- Black stainless
Front Hub
- Shimano MT400-B; 110x15mm; 32 spokes; Center lock
Rear Hub
- Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
Front Tyre
- Maxxis Rekon; 29″ x 2.4″; wire bead; dual
Rear Tyre
- Maxxis Rekon; 27.5″ x 2.6″; wire bead; EXO
Colour
- Teal/Black
Season
- 2023
Front Light
- Lezyne eBike Power STVZO E115 front light
Rear Light
- USB REAR Light CG-214RG
Other
- Complete with: mini fenders and front / rear lights. Shimano Satellite charging port; EW-CP100
