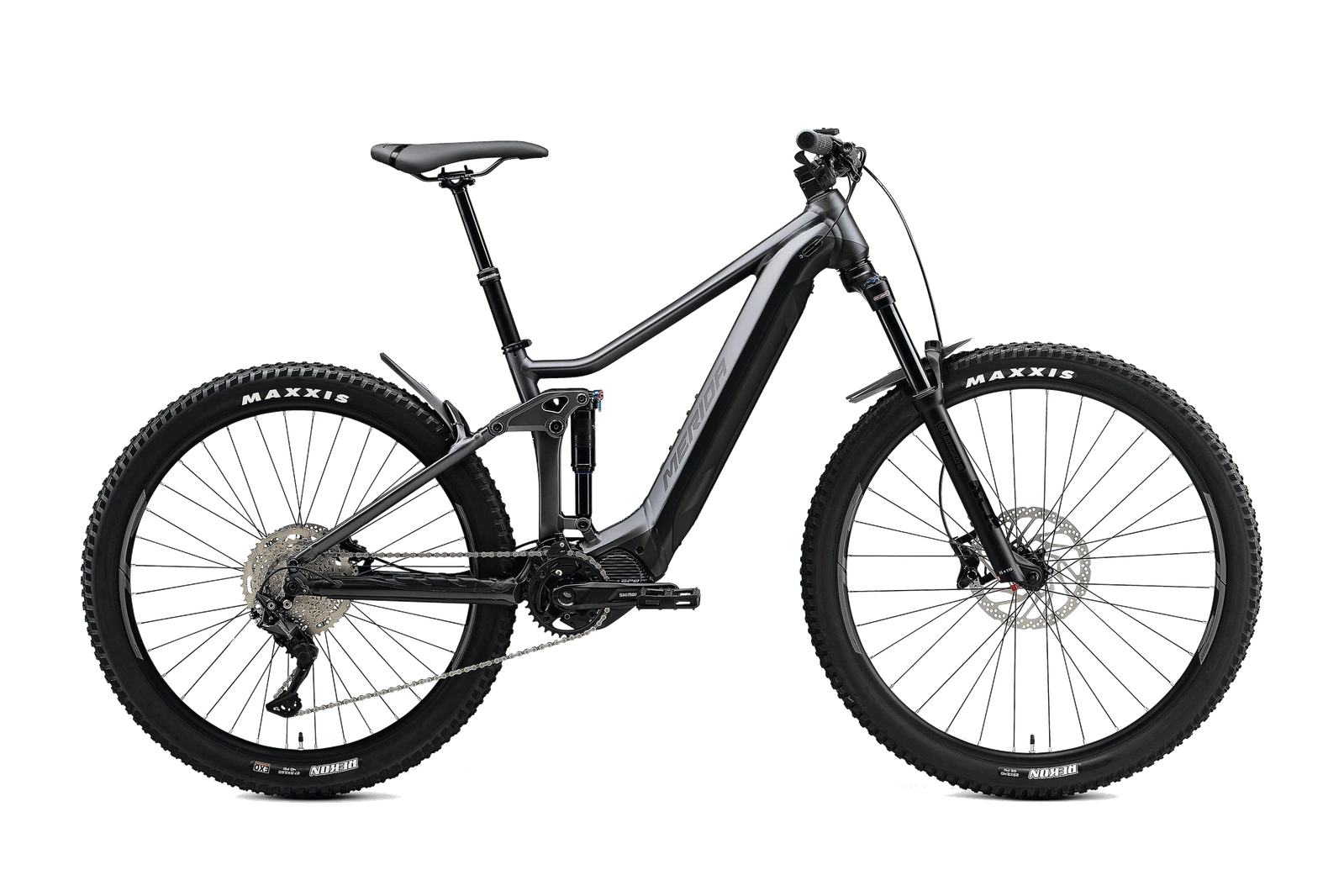

Merida eOne-Forty 400 eBike
The entry into full suspension eBikes. -Sleek aluminium frame housing a 630Wh battery -85Nm Shimano EP8 motor.
Confirm price and options with the shop
Collect from Wallasey, built and set up for you. How it works
Your bike. Your way to buy.Explore finance, deposits & Cycle to Work.Returns & support
We’re here to help with your purchase. Read our returns and warranty information.
Made for the way you ride.
The entry into full suspension eBikes. -Sleek aluminium frame housing a 630Wh battery -85Nm Shimano EP8 motor.
The eOne-Forty and eOne-Sixty share the same frame and design features but have different ride characteristics.
The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach and delivers a slightly steeper head angle. In combination these slight changes make the eOne-Forty more agile and playful, a highly competent climber and perfect for all day riding.
The mixed wheel size set up is carried over, to give the electric full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, a 29er front wheel with a 2.5″ tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6″ tyre. The perfect combination of precision, playfulness, and traction.
Specification, at a glance.
Electric system
| Motor | Shimano EP8 |
|---|---|
| Battery | Shimano E8036 630Wh / Shimano E8035 504Wh for S only |
| Charger | Shimano EC-E6002 |
| Display | Shimano SC-E5003A |
Frame & suspension
| Frame | eONE-FORTY LITE III |
|---|---|
| Frame size | S, M, L, XL, XXL |
| Rear shock | SR Suntour EDGE |
| Fork | SR Suntour XCR34 LOR DS |
Gears & drivetrain
| Cassette | Shimano M4100 |
|---|---|
| Chain | KMC e10s |
| Shifters | Shimano SL -MT500-L clamp band / Shimano Deore M4100 |
| Rear derailleur | Shimano Deore RDM5120 10 |
| Pedals | VP VPE-537 |
Braking
| Brakes | Shimano M4100 |
|---|---|
| Rotors | Shimano RT30 / Shimano RTEM300 |
Wheels & tyres
| Rims | MERIDA COMP TR |
|---|---|
| Front tyre | Maxxis Rekon |
| Rear tyre | Maxxis Rekon |
Cockpit & contact points
| Headset | MERIDA 8152 |
|---|---|
| Stem | MERIDA EXPERT eTRII |
| Handlebar | MERIDA EXPERT eTR |
| Grips | MERIDA EXPERT EC |
| Seatpost | MERIDA COMP TR |
| Saddle | MERIDA COMP SL |
| Seat clamp | MERIDA EXPERT |
Details & equipment
| Sensor | Shimano EW-SS301 |
|---|---|
| Lights | Dlight CG-119PG / Dlight CG-404RG |
| Chainring | Shimano CRE70-B |
| Cranks | Shimano FCEM600 |
More about this model
The eOne-Forty and eOne-Sixty share the same frame and design features but have different ride characteristics.
The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach and delivers a slightly steeper head angle. In combination these slight changes make the eOne-Forty more agile and playful, a highly competent climber and perfect for all day riding.
The mixed wheel size set up is carried over, to give the electric full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, a 29er front wheel with a 2.5″ tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6″ tyre. The perfect combination of precision, playfulness, and traction.
All eOne-Forty models use the powerful new Shimano EP8 85NM motor and bigger 630Wh battery (except for S frame sizes which use 504Wh).
Shimano’s e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
A proper bike. Properly looked after.
Your complete bike is professionally built and tuned, with fit advice and suspension setup where applicable.
Three months’ servicing and help from our Wallasey workshop come with the ride. Ask us about BikeRegister registration and fitting compatible accessories.
