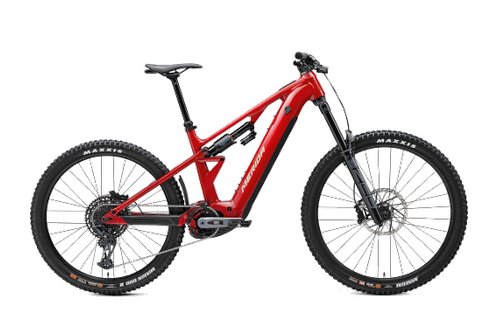

Merida eOne Eighty 700 eBike
Ready to ride the biggest lines and burliest tracks and no waiting in the uplift queue: repeat all day long thanks to a big 800Wh battery and Bosch CX power.
Confirm price and options with the shop
Collect from Wallasey, built and set up for you. How it works
Your bike. Your way to buy.Explore finance, deposits & Cycle to Work.Returns & support
We’re here to help with your purchase. Read our returns and warranty information.
Made for the way you ride.
Ready to ride the biggest lines and burliest tracks and no waiting in the uplift queue: repeat all day long thanks to a big 800Wh battery and Bosch CX power.
Tough aluminium frame with 180mm rear wheel travel and mixed wheel sizes as standard for fun and agile handling* RockShox Zeb Select fork with 180mm travel, RockShox Vivid Select rear shock
Our longest travel e-bike ever, for big mountains or bike parks. Aluminium frame, powerful 85NM Bosch Performance Line CX Motor and removable 800Wh battery. A 250Wh range extender is available separately. RockShox Zeb Select fork and Vivid Select air shock, SRAM GX Eagle 12 speed plus DB8 4-piston brakes and Expert TRII mullet wheelset complete the line up. 5 year frame warranty (category 5).
The eOne-Eighty 700 offers a perfect pairing of performance and price, thanks to a spec that’s functional without being flash. Our tough aluminium frame serves up 180mm of big-mountain-ready travel in an agile mixed wheel size package, while the powerful Bosch CX drive unit with 800Wh battery means you can ride all day long. RockShox’s Zeb Select 180mm fork and Vivid Select shock will tame anything the trail throws at you, and SRAM’s GX Eagle drivetrain offers no-fuss shifting. The eOne-Eighty is for the heavy hitters, bike park senders and big mountain brawlers. It’s ready to ride the biggest lines and burliest tracks and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800Wh battery and Bosch CX power. It’s our longest travel e-bike ever, with 180mm of suspension at either end on a robust aluminium frame. Add coil shock compatibility, mullet only setup plus a whole host of other features and getting rowdy is where the eOne-Eighty starts, not finishes. It’s also our first e-MTB to use the Bosch Performance Line CX drive unit, offering powerful assistance with 85Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800Wh battery and the option to add a 250Wh Bosch range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride. It’s rated Category 5 (bike park and downhill approved), so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty. Approx overall weight 26kg
Specification, at a glance.
Electric system
| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 800; 800Wh |
| Display | Bosch Purion 400 |
Frame & suspension
| Frame | LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” |
|---|---|
| Rear shock | RockShox Vivid Select |
| Fork | Rockshox Zeb Select eMTB; Air; 180mm travel; Tapered; 44mm fork offset; 29×2.6″ max. tyre size |
Gears & drivetrain
| Drivetrain | 12 |
|---|---|
| Shifters | SRAM GX Eagle |
| Rear derailleur | SRAM GX Eagle |
| Bottom bracket | Attached |
| Chain | Sram NX Eagle |
| Chainset | SRAM Eagle Transmission E-MTB for BOSCH; 34 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes |
| Cassette | SRAM CS XS 1270 ; 10-52 teeth; 12 speed |
| Pedals | VP VP-532 |
Braking
| Brake levers | SRAM DB8 |
|---|---|
| Front brake | SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 220mm rotor |
| Rear brake | SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 200mm rotor |
Wheels & tyres
| Wheel size | 29″ / 27.5″ |
|---|---|
| Rims | Merida Expert TR II; 110×15 WHF; 148×12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29″; rear 27.5″ |
| Spokes | Black stainless |
| Front hub | Shimano TC500; 15x100mm; 32 spoke; Centerlock |
| Rear hub | Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key |
| Front tyre | Maxxis Assegai; 29×2.5″; kevlar bead; TR EXO+ 3C MaxxGrip |
| Rear tyre | Maxxis Minion DHR II; 27.5×2.4″; kevlar bead; 3C DD TR MaxxTerra |
Cockpit & contact points
| Grips | Merida Expert EC |
|---|---|
| Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise |
| Stem | Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes |
| Headset | Acros ICR Merida external neck with Blocklock |
| Saddle | Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool |
| Seatpost | Merida TEAM TR II; 34.9mm diameter; 0 mm lay back; all sizes 30-230mm travel |
Details & equipment
| Colour | Glossy Heritage Red |
|---|---|
| Model year | 2025 |
| Front light | Lezyne Fusion StVZO E500 |
| Rear light | USB REAR Light CG-214RG |
More about this model
Tough aluminium frame with 180mm rear wheel travel and mixed wheel sizes as standard for fun and agile handling* RockShox Zeb Select fork with 180mm travel, RockShox Vivid Select rear shock
- SRAM GX Eagle 12-speed drivetrain, Merida Team TR II tubeless ready wheelset
- SRAM DB8 Stealth 4-piston brakes with 220 / 200mm rotors
- User removable 800Wh battery with optional 250Wh range extender, powerful Bosch CX drive unit
- Reach-based Agilometer sizing system with 30-230mm adjustable dropper post
Our longest travel e-bike ever, for big mountains or bike parks. Aluminium frame, powerful 85NM Bosch Performance Line CX Motor and removable 800Wh battery. A 250Wh range extender is available separately. RockShox Zeb Select fork and Vivid Select air shock, SRAM GX Eagle 12 speed plus DB8 4-piston brakes and Expert TRII mullet wheelset complete the line up. 5 year frame warranty (category 5).
The eOne-Eighty 700 offers a perfect pairing of performance and price, thanks to a spec that’s functional without being flash. Our tough aluminium frame serves up 180mm of big-mountain-ready travel in an agile mixed wheel size package, while the powerful Bosch CX drive unit with 800Wh battery means you can ride all day long. RockShox’s Zeb Select 180mm fork and Vivid Select shock will tame anything the trail throws at you, and SRAM’s GX Eagle drivetrain offers no-fuss shifting. The eOne-Eighty is for the heavy hitters, bike park senders and big mountain brawlers. It’s ready to ride the biggest lines and burliest tracks and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800Wh battery and Bosch CX power. It’s our longest travel e-bike ever, with 180mm of suspension at either end on a robust aluminium frame. Add coil shock compatibility, mullet only setup plus a whole host of other features and getting rowdy is where the eOne-Eighty starts, not finishes. It’s also our first e-MTB to use the Bosch Performance Line CX drive unit, offering powerful assistance with 85Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800Wh battery and the option to add a 250Wh Bosch range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride. It’s rated Category 5 (bike park and downhill approved), so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty. Approx overall weight 26kg
Specification
- LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6”
- Bosch Performance Line CX
- Bosch PowerTube 800; 800Wh
- 800Wh
- Bosch Purion 400
- Bosch Mini Remote
- RockShox Vivid Select
- Rockshox Zeb Select eMTB; Air; 180mm travel; Tapered; 44mm fork offset; 29×2.6″ max. tyre size
- 12
- SRAM GX Eagle
- SRAM GX Eagle
- Attached
- Sram NX Eagle
- SRAM Eagle Transmission E-MTB for BOSCH; 34 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes
- SRAM CS XS 1270 ; 10-52 teeth; 12 speed
- SRAM DB8
- SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 220mm rotor
- SRAM DB8 Stealth 4 piston hydraulic disc caliper with SRAM HS2, 200mm rotor
- Merida Expert EC
- Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise
- Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes
- Acros ICR Merida external neck with Blocklock
- VP VP-532
- Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool
- Merida TEAM TR II; 34.9mm diameter; 0 mm lay back; all sizes 30-230mm travel
- 29″ / 27.5″
- Merida Expert TR II; 110×15 WHF; 148×12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29″; rear 27.5″
- Black stainless
- Shimano TC500; 15x100mm; 32 spoke; Centerlock
- Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
- Maxxis Assegai; 29×2.5″; kevlar bead; TR EXO+ 3C MaxxGrip
- Maxxis Minion DHR II; 27.5×2.4″; kevlar bead; 3C DD TR MaxxTerra
- Glossy Heritage Red
- 2025
- Lezyne Fusion StVZO E500
- USB REAR Light CG-214RG
A proper bike. Properly looked after.
Your complete bike is professionally built and tuned, with fit advice and suspension setup where applicable.
Three months’ servicing and help from our Wallasey workshop come with the ride. Ask us about BikeRegister registration and fitting compatible accessories.
