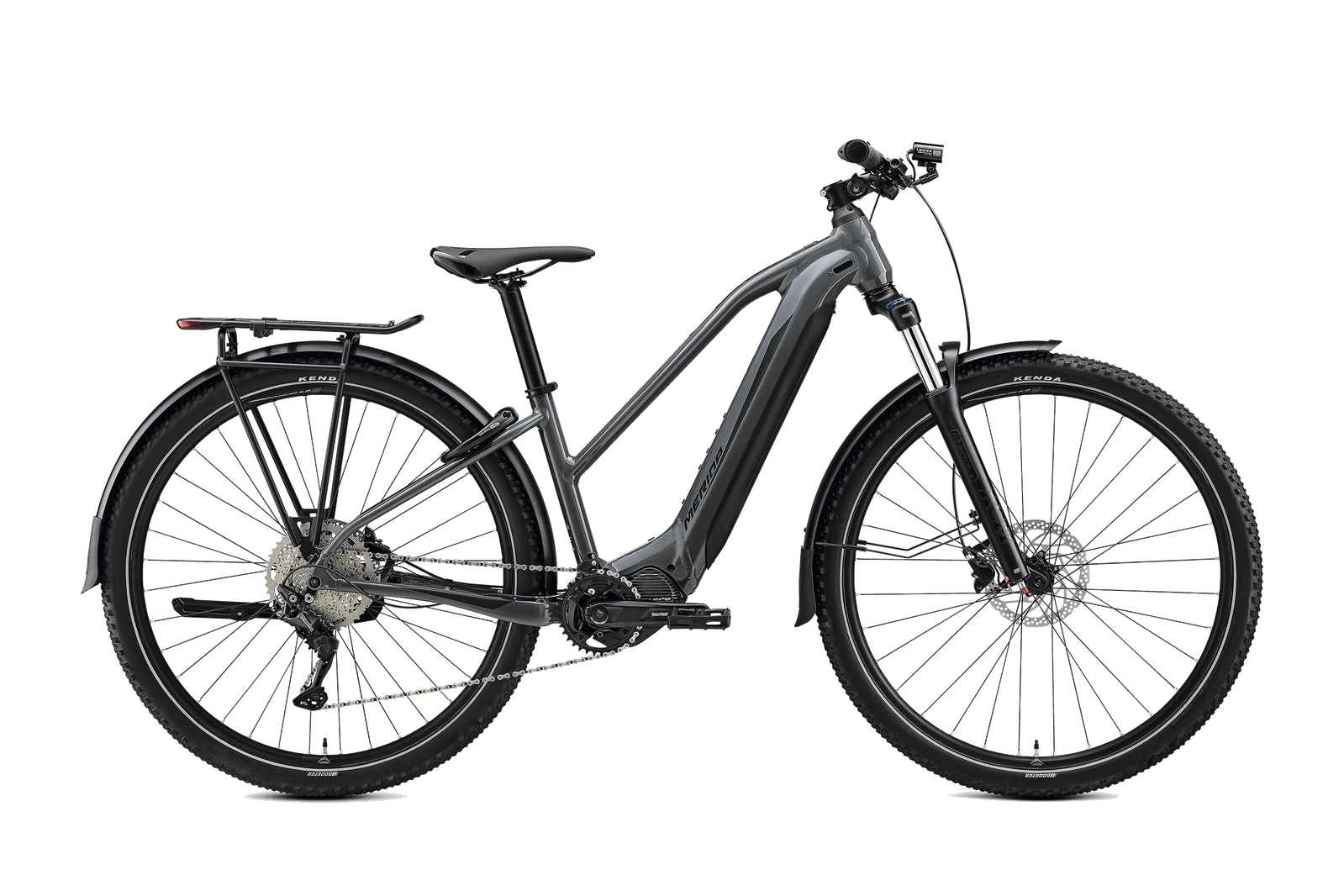

Merida eBig Tour 400 EQ eMountain Bike
Versatile hardtail eMTB with 85Nm Shimano Steps motor and 630Wh battery, Equipped with mudguards and rack for all year practicality. 10 gears, Suntour XCM34 fork and hydraulic disc brakes.
Confirm price and options with the shop
Collect from Wallasey, built and set up for you. How it works
Your bike. Your way to buy.Explore finance, deposits & Cycle to Work.Returns & support
We’re here to help with your purchase. Read our returns and warranty information.
Made for the way you ride.
Versatile hardtail eMTB with 85Nm Shimano Steps motor and 630Wh battery, Equipped with mudguards and rack for all year practicality. 10 gears, Suntour XCM34 fork and hydraulic disc brakes.
The cycling equivalent of an SUV; stylish and practical. 29” wheels make for effortless cycling. The fast and grippy 2.2” Kenda Booster tyres fit neatly inside the mudguards for year-round practicality.
The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride.
Some of the technical features and thinking from our award-winning eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing.
Specification, at a glance.
Electric system
| Motor | Shimano EP8 |
|---|---|
| Battery | Shimano E8036 |
| Charger | Shimano EC-E6002 |
| Display | Shimano SC-E5003A |
Frame & suspension
| Frame | eBIG.TOUR LITE III |
|---|---|
| Frame size | S, M, L, XL |
| Fork | SR Suntour XCM34-Boost LOR DS |
Gears & drivetrain
| Cassette | Shimano M4100 |
|---|---|
| Chain | KMC e10s |
| Shifters | Shimano Deore M4100 |
| Rear derailleur | Shimano Deore M5120 |
| Pedals | VP VPE-537 |
Braking
| Brakes | Shimano MT200 |
|---|---|
| Rotors | Shimano RT30 / Shimano RTEM300 |
Wheels & tyres
| Rims | MERIDA COMP CC |
|---|---|
| Front tyre | Kenda Booster |
| Rear tyre | Kenda Booster |
Cockpit & contact points
| Headset | MERIDA 8155 |
|---|---|
| Stem | MERIDA EXPERT CT |
| Handlebar | MERIDA EXPERT CC |
| Grips | MERIDA EXPERT TK |
| Seatpost | MERIDA EXPERT CC |
| Saddle | MERIDA EXPERT TK |
| Seat clamp | MERIDA EXPERT |
Details & equipment
| Sensor | Shimano EW-SS301 |
|---|---|
| Lights | Lezyne E-Bike Hecto E65 / Spanninga Commuter Glow XE |
| Rear carrier | MERIDA MA008-1 |
| Kickstand | Massload CL-KA98 |
| Chainring | Shimano CRE70-B |
| Cranks | Shimano FCEM600 |
More about this model
The cycling equivalent of an SUV; stylish and practical. 29” wheels make for effortless cycling. The fast and grippy 2.2” Kenda Booster tyres fit neatly inside the mudguards for year-round practicality.
The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride.
Some of the technical features and thinking from our award-winning eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing.
The list of well thought through details include tyres with reflective strips, a rack with an integrated rear light, a Lezyne front light, an integrated lock and a kick stand.
PEDAL VP VPE-537
https://www.merida-bikes.com/en-gb/bikefinder/tag/ebig-tour-192/root/e-mtb
A proper bike. Properly looked after.
Your complete bike is professionally built and tuned, with fit advice and suspension setup where applicable.
Three months’ servicing and help from our Wallasey workshop come with the ride. Ask us about BikeRegister registration and fitting compatible accessories.
