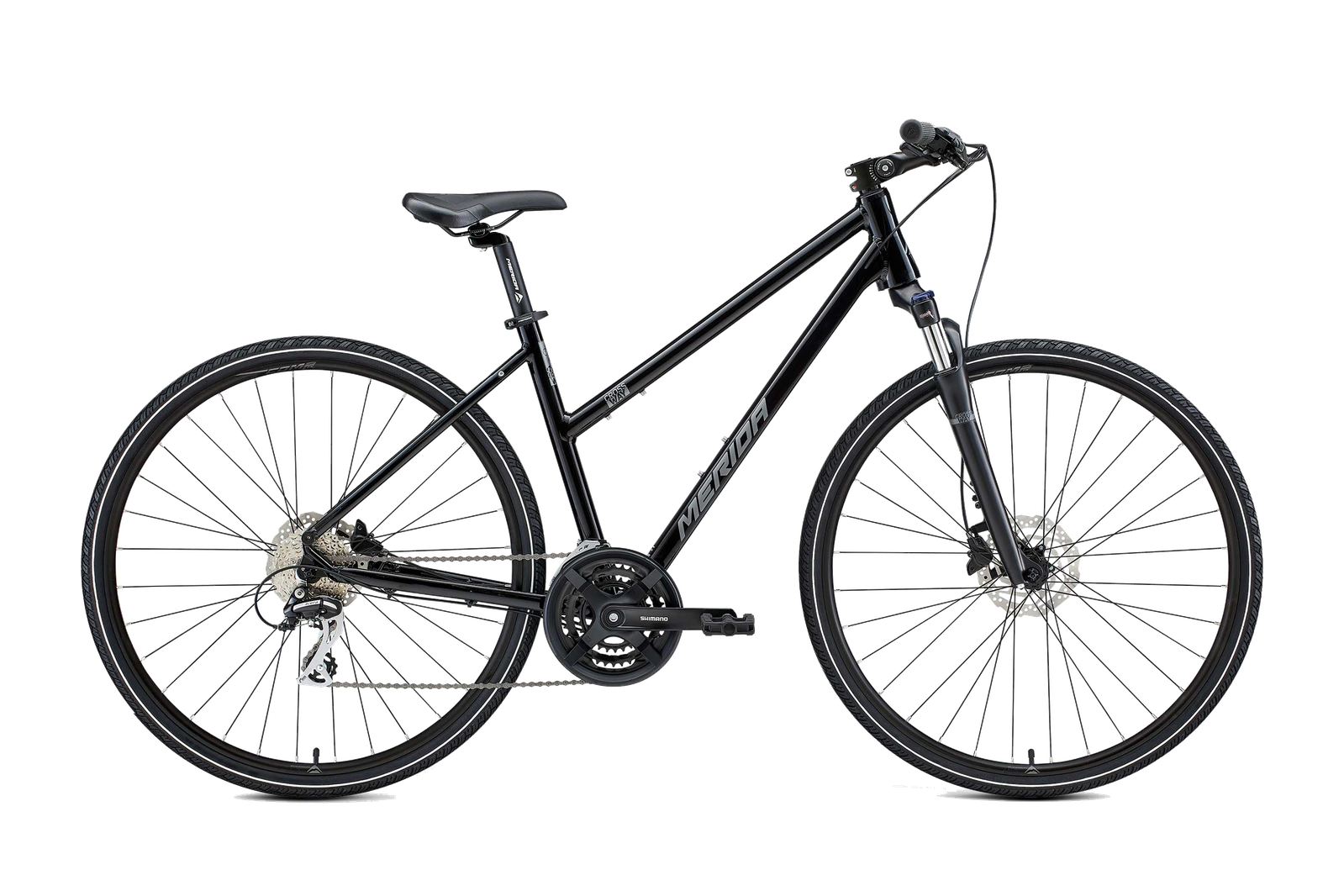

Merida Crossway 20 Low Step – Black Hybrid
Built & tunedReady for your first ride Personal setupA fit that works for you Local supportThree months’ servicing

Merida Crossway 20 Low Step – Black Hybrid

Only some sizes left at this price

Confirm price and options with the shop

Checking availability…
Find your fit
Ask us about this bike

Collect from Wallasey, built and set up for you. How it works

Your bike. Your way to buy.Explore finance, deposits & Cycle to Work.
Returns & support

We’re here to help with your purchase. Read our returns and warranty information.

GET TO KNOW YOUR NEXT RIDE

Made for the way you ride.

Only some sizes left at this price

Specification, at a glance.

Frame & suspension

FrameTFS – 6061 series double butted and technoformed aluminium tubing with new ‘urban’ look and internal cable routing. Tapered head tube for confidence-inspiring handling. Equipped with mounts for rack, mudguards and kickstand.
ForkSuntour NEX HLO; Coil; 63mm travel; Lockout

Gears & drivetrain

Drivetrain24
ShiftersShimano ST-EF505
Front derailleurShimano FD-TY710
Rear derailleurShimano RD-M360
ChainsetShimano TY301; 48-38-28 teeth chainwheel with 170mm – XXS/SM, 175mm – ML/XXL length crank
CassetteSunrace CSM668; 11-32 teeth; 8 speed
Bottom bracketFSA TH-7420ST-W, Cartridge Bearing
ChainSunrace M84
PedalsVP Components, VPE-891

Braking

Brake leversShimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
Front brakeShimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
Rear brakeShimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor

Wheels & tyres

Wheel size700c
RimsMerida CC; 17mm inner rim width; Material: aluminium
SpokesBlack steel
Front hubShimano TX505; 100x9mm; 32 spokes; Centerlock
Rear hubShimano TX505; 135x9mm; 32 spokes; Centerlock
Front tyreMerida K1171; 700 x 40C; wire bead
Rear tyreMerida K1171; 700 x 40C; wire bead

Cockpit & contact points

GripsMerida EC
HandlebarMerida CC; aluminium; 660mm wide; 25mm rise
StemMerida TK; aluminium; 25.4mm diameter; adjustable – Length : 100 mm all sizes
HeadsetMerida M2345
SaddleMerida Cross Sport
SeatpostMerida CC; aluminium; 30.9mm diameter; 15mm lay back

Details & equipment

Model year2021
More about this model
FRAME
  • TFS – 6061 series double butted and technoformed aluminium tubing with new ‘urban’ look and internal cable routing. Tapered head tube for confidence-inspiring handling. Equipped with mounts for rack, mudguards and kickstand.
FORK
  • Suntour NEX HLO; Coil; 63mm travel; Lockout
WHEEL SIZE
  • 700c
RIMS
  • Merida CC; 17mm inner rim width; Material: aluminium
SPOKES
  • Black steel
FRONT HUB
  • Shimano TX505; 100x9mm; 32 spokes; Centerlock
REAR HUB
  • Shimano TX505; 135x9mm; 32 spokes; Centerlock
FRONT TYRE
  • Merida K1171; 700 x 40C; wire bead
REAR TYRE
  • Merida K1171; 700 x 40C; wire bead
GEARS
  • 24
SHIFTERS
  • Shimano ST-EF505
FRONT DERAILLEUR
  • Shimano FD-TY710
REAR DERAILLEUR
  • Shimano RD-M360
CHAINSET
  • Shimano TY301; 48-38-28 teeth chainwheel with 170mm – XXS/SM, 175mm – ML/XXL length crank
CASSETTE
  • Sunrace CSM668; 11-32 teeth; 8 speed
BOTTOM BRACKET
  • FSA TH-7420ST-W, Cartridge Bearing
CHAIN
  • Sunrace M84
PEDAL
  • VP Components, VPE-891
BRAKE LEVER
  • Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
FRONT BRAKE
  • Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
REAR BRAKE
  • Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
GRIP
  • Merida EC
HANDLEBAR
  • Merida CC; aluminium; 660mm wide; 25mm rise
STEM
  • Merida TK; aluminium; 25.4mm diameter; adjustable – Length : 100 mm all sizes
HEAD SET
  • Merida M2345
SADDLE
  • Merida Cross Sport
SEAT POST
  • Merida CC; aluminium; 30.9mm diameter; 15mm lay back
SEASON
  • 2021
