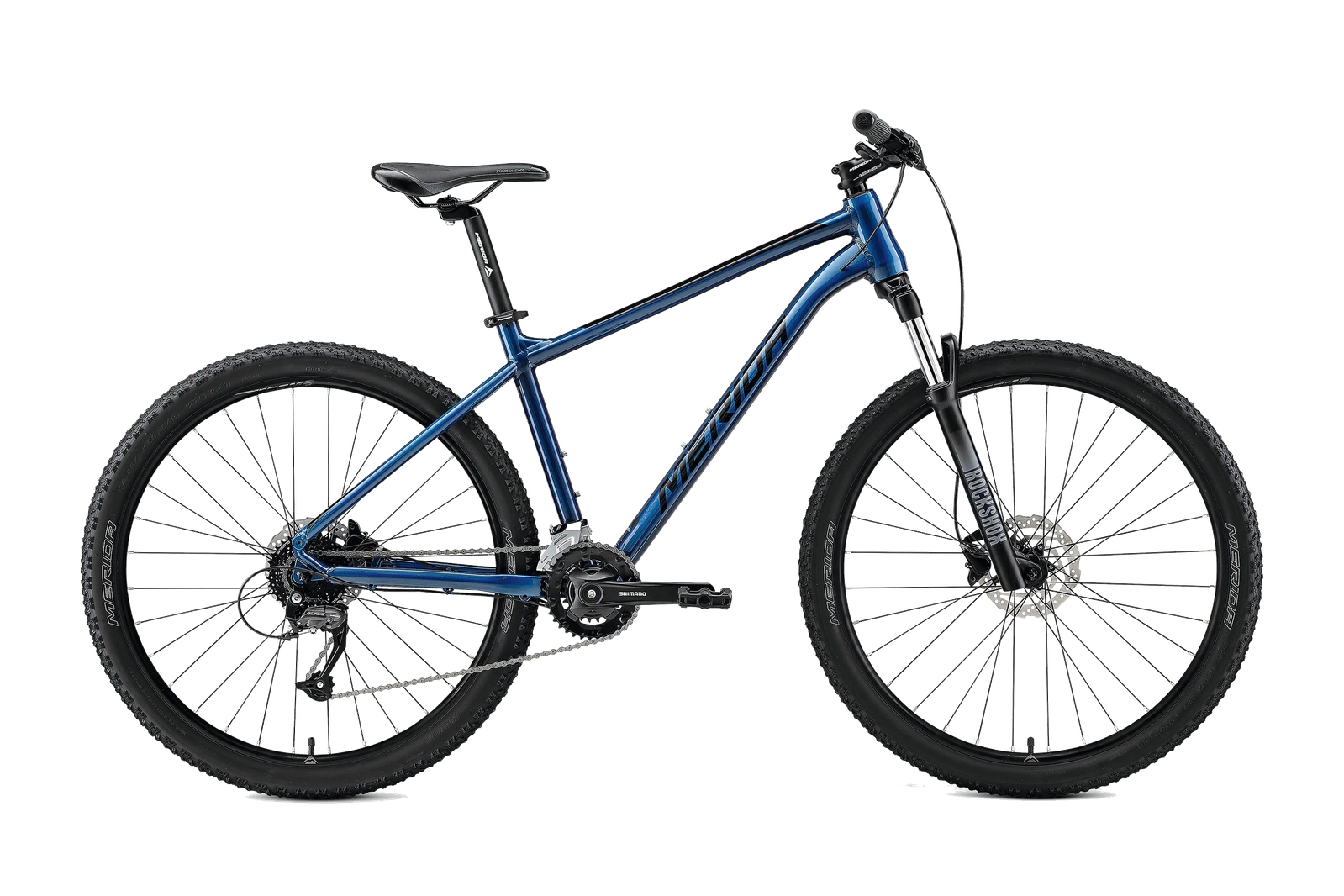

Merida Big Seven 60 – Blue 27.5″ MTB
Built & tunedReady for your first ride Personal setupA fit that works for you Local supportThree months’ servicing

Merida Big Seven 60 – Blue 27.5″ MTB

FRAME TFS – 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands. FORK Rock Shox Judy TK; Coil; 100mm suspension travel Lockout; 42mm fork offset WHEEL SIZE 27.5″ RIMS M

Confirm price and options with the shop

Checking availability…
Find your fit
Ask us about this bike

Collect from Wallasey, built and set up for you. How it works

Your bike. Your way to buy.Explore finance, deposits & Cycle to Work.
Returns & support

We’re here to help with your purchase. Read our returns and warranty information.

GET TO KNOW YOUR NEXT RIDE

Made for the way you ride.

FRAME TFS – 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands. FORK Rock Shox Judy TK; Coil; 100mm suspension travel Lockout; 42mm fork offset WHEEL SIZE 27.5″ RIMS M

Specification, at a glance.

Frame & suspension

FrameTFS – 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands.
ForkRock Shox Judy TK; Coil; 100mm suspension travel Lockout; 42mm fork offset

Gears & drivetrain

Drivetrain18
ShiftersShimano ST-EF505
Front derailleurShimano FD-M2020-TS
Rear derailleurShimano RD-M370
ChainsetShimano MT101-2; 36-22 teeth chainwheel with 170mm – XS/S, 175mm – M/L length crank
CassetteShimano CS-HG200; 11-32 teeth; 9 speed
Bottom bracketShimano BB-UN100 (or FSA TH-7420ST if Shimano supply is delayed)
ChainKMC M99
PedalsVP Components, VPE-891

Braking

Brake leversShimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
Front brakeShimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
Rear brakeShimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor

Wheels & tyres

Wheel size27.5″
RimsMerida CC; 17mm inner width; Material: aluminium
SpokesBlack steel
Front hubShimano TX505; 100x9mm; 32 spokes; Centerlock
Rear hubShimano TX505; 135x9mm; 32 spokes; Centerlock
Front tyreMerida K1080; 27.5″ x 2.2″; wire bead
Rear tyreMerida K1080; 27.5″ x 2.2″; wire bead

Cockpit & contact points

GripsMerida EC
HandlebarMerida CC; aluminium; 690mm width; 15mm rise
StemMerida CC; aluminium; 31.8mm diameter; 6 degree stem angle – Length : 70 mm-XS/S, 80 mm-M, 90 mm-L
HeadsetMerida M2345
SaddleMerida Sport comfort
SeatpostMerida CC; aluminium; 30.9mm diameter; 15mm setback

Details & equipment

Model year2021
More about this model
FRAME
  • TFS – 6061 series aluminium tubing, double butted and technoformed.  Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands.
FORK
  • Rock Shox Judy TK; Coil; 100mm suspension travel Lockout; 42mm fork offset
WHEEL SIZE
  • 27.5″
RIMS
  • Merida CC; 17mm inner width; Material: aluminium
SPOKES
  • Black steel
FRONT HUB
  • Shimano TX505; 100x9mm; 32 spokes; Centerlock
REAR HUB
  • Shimano TX505; 135x9mm; 32 spokes; Centerlock
FRONT TYRE
  • Merida K1080; 27.5″ x 2.2″; wire bead
REAR TYRE
  • Merida K1080; 27.5″ x 2.2″; wire bead
GEARS
  • 18
SHIFTERS
  • Shimano ST-EF505
FRONT DERAILLEUR
  • Shimano FD-M2020-TS
REAR DERAILLEUR
  • Shimano RD-M370
CHAINSET
  • Shimano MT101-2; 36-22 teeth chainwheel with 170mm – XS/S, 175mm – M/L length crank
CASSETTE
  • Shimano CS-HG200; 11-32 teeth; 9 speed
BOTTOM BRACKET
  • Shimano BB-UN100 (or FSA TH-7420ST if Shimano supply is delayed)
CHAIN
  • KMC M99
PEDAL
  • VP Components, VPE-891
BRAKE LEVER
  • Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
FRONT BRAKE
  • Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
REAR BRAKE
  • Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
GRIP
  • Merida EC
HANDLEBAR
  • Merida CC; aluminium; 690mm width; 15mm rise
STEM
  • Merida CC; aluminium; 31.8mm diameter; 6 degree stem angle – Length : 70 mm-XS/S, 80 mm-M, 90 mm-L
HEAD SET
  • Merida M2345
SADDLE
  • Merida Sport comfort
SEAT POST
  • Merida CC; aluminium; 30.9mm diameter; 15mm setback
SEASON
  • 2021
THE OFF THE ROCK DIFFERENCE

A proper bike. Properly looked after.

Your complete bike is professionally built and tuned, with fit advice and suspension setup where applicable.

Three months’ servicing and help from our Wallasey workshop come with the ride. Ask us about BikeRegister registration and fitting compatible accessories.
