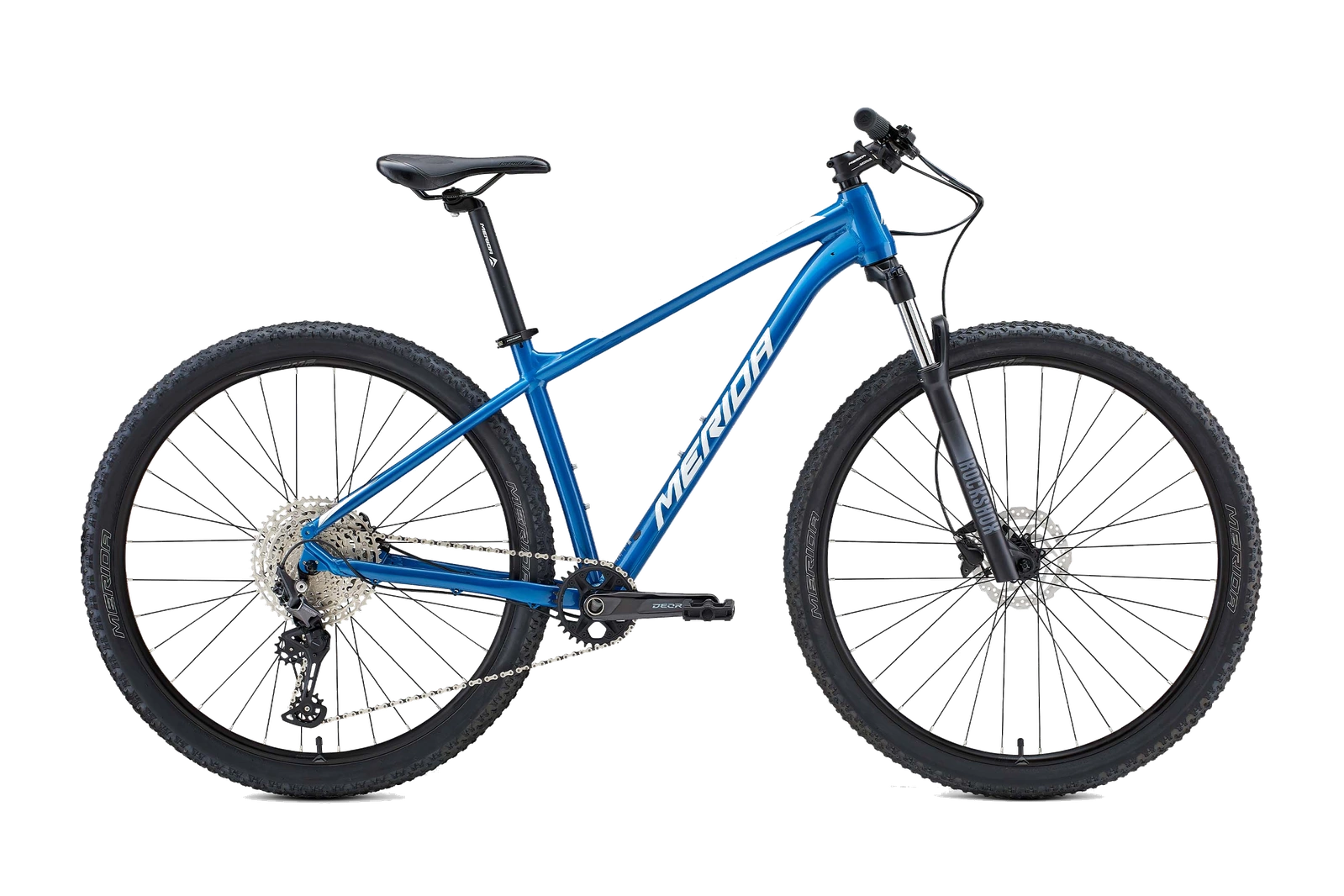

Merida Big Nine 80 Blue/White 29er MTB
FRAME TFS – 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands. FORK Rock Shox Judy TK; Coil; 100mm travel Lockout; 46mm fork offset WHEEL SIZE 29″ RIMS Merida CC; 17m
Confirm price and options with the shop
Collect from Wallasey, built and set up for you. How it works
Your bike. Your way to buy.Explore finance, deposits & Cycle to Work.Returns & support
We’re here to help with your purchase. Read our returns and warranty information.
Made for the way you ride.
FRAME TFS – 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands. FORK Rock Shox Judy TK; Coil; 100mm travel Lockout; 46mm fork offset WHEEL SIZE 29″ RIMS Merida CC; 17m
Specification, at a glance.
Frame & suspension
| Frame | TFS – 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands. |
|---|---|
| Fork | Rock Shox Judy TK; Coil; 100mm travel Lockout; 46mm fork offset |
Gears & drivetrain
| Drivetrain | 12 |
|---|---|
| Shifters | Shimano Deore SL-M6100 12 speed |
| Rear derailleur | Shimano Deore M6100SGS Shadow+ |
| Chainset | Shimano Deore M6100; 30 teeth chainwheel with 170mm – XS/S, 175mm – M/L length crank |
| Cassette | Shimano Deore M6100; 10-51 teeth; 12 speed |
| Bottom bracket | Shimano Deore |
| Chain | KMC X10 |
| Pedals | VP Components, VPE-891 |
Braking
| Brake levers | Shimano MT-200 |
|---|---|
| Front brake | Shimano MT-200 hydraulic brake caliper with Shimano RT10; 160mm rotor |
| Rear brake | Shimano MT-200 hydraulic brake caliper with Shimano RT10; 160mm rotor |
Wheels & tyres
| Wheel size | 29″ |
|---|---|
| Rims | Merida CC; 17mm inner rim width; Material: aluminium |
| Spokes | Black steel |
| Front hub | Shimano TX505; 100x9mm; 32 spokes; Centerlock |
| Rear hub | Shimano MT-401; 135x9mm; 32 spokes; Centerlock |
| Front tyre | Merida K1080; 29″ x 2.2″; wire bead |
| Rear tyre | Merida K1080; 29″ x 2.2″; wire bead |
Cockpit & contact points
| Grips | Merida EC |
|---|---|
| Handlebar | Merida CC; aluminium; 690mm wide; 15mm rise |
| Stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise – Length : 70 mm-XS/S, 80 mm-M, 90 mm-L |
| Headset | Merida M2345 |
| Saddle | Merida Sport comfort |
| Seatpost | Merida CC; aluminium; 30.9mm diameter; 15mm lay back |
More about this model
- TFS – 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands.
- Rock Shox Judy TK; Coil; 100mm travel Lockout; 46mm fork offset
- 29″
- Merida CC; 17mm inner rim width; Material: aluminium
- Black steel
- Shimano TX505; 100x9mm; 32 spokes; Centerlock
- Shimano MT-401; 135x9mm; 32 spokes; Centerlock
- Merida K1080; 29″ x 2.2″; wire bead
- Merida K1080; 29″ x 2.2″; wire bead
- 12
- Shimano Deore SL-M6100 12 speed
- Shimano Deore M6100SGS Shadow+
- Shimano Deore M6100; 30 teeth chainwheel with 170mm – XS/S, 175mm – M/L length crank
- Shimano Deore M6100; 10-51 teeth; 12 speed
- Shimano Deore
- KMC X10
- VP Components, VPE-891
- Shimano MT-200
- Shimano MT-200 hydraulic brake caliper with Shimano RT10; 160mm rotor
- Shimano MT-200 hydraulic brake caliper with Shimano RT10; 160mm rotor
- Merida EC
- Merida CC; aluminium; 690mm wide; 15mm rise
- Merida CC; aluminium; 31.8mm diameter; 6 degree rise – Length : 70 mm-XS/S, 80 mm-M, 90 mm-L
- Merida M2345
- Merida Sport comfort
- Merida CC; aluminium; 30.9mm diameter; 15mm lay back
A proper bike. Properly looked after.
Your complete bike is professionally built and tuned, with fit advice and suspension setup where applicable.
Three months’ servicing and help from our Wallasey workshop come with the ride. Ask us about BikeRegister registration and fitting compatible accessories.
