- RockShox Judy TK fork
- Shimano 2 x 9 drivetrain
- Sophisticated aluminium frame
- Hydraulic disc brakes
- Tapered head tube
- Internal cable routing

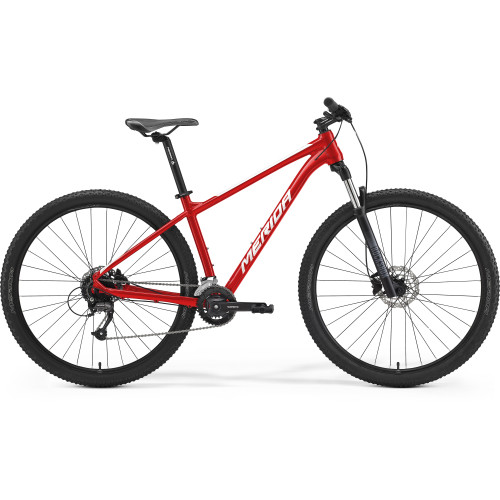

29er hardtail with sophisticated TFS aluminium frame, 2 x 9 drivetrain, RockShox Judy fork and complete Shimano drivetrain, Shimano hubs, and hydraulic disc brakes.
Merida’s heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping power As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability. There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.
- TFS – 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands.
- Rock Shox Judy TK; Coil; 100mm suspension travel Lockout; 46mm fork offset
- 27.5″/29″
- Merida CC; 17mm inner width; Material: aluminium
- Black steel
- Shimano TX505; 100x9mm; 32 spokes; Centerlock
- Shimano TX505; 135x9mm; 32 spokes; Centerlock
- Merida K1080; 29″ x 2.2″; wire bead
- Merida K1080; x 2.2″; wire bead
- 18
- Shimano ST-EF505
- Shimano FD-M2020-TS
- Shimano RD-M370
- Shimano MT101-2; 36-22 teeth chainwheel with 170mm – S, 175mm – M/XXL length crank
- Shimano CS-HG200; 11-32 teeth; 9 speed
- Shimano BB-UN100 (or FSA TH-7420ST if Shimano supply is delayed)
- KMC M99
- VP Components, VPE-891
- Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
- Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
- Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
- Merida EC
- Merida CC; aluminium; 690mm width; 15mm rise
- Merida CC; aluminium; 31.8mm diameter; 6 degree stem angle – Length : 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
- Merida M2345
- Merida Sport comfort
- Merida CC; aluminium; 30.9mm diameter; 15mm setback
