Highlights:
-
- Lightweight package
- Focussed on simplicity
- Oversize tyres
- 7 trigger operated gears
- Hydraulic disc brakes

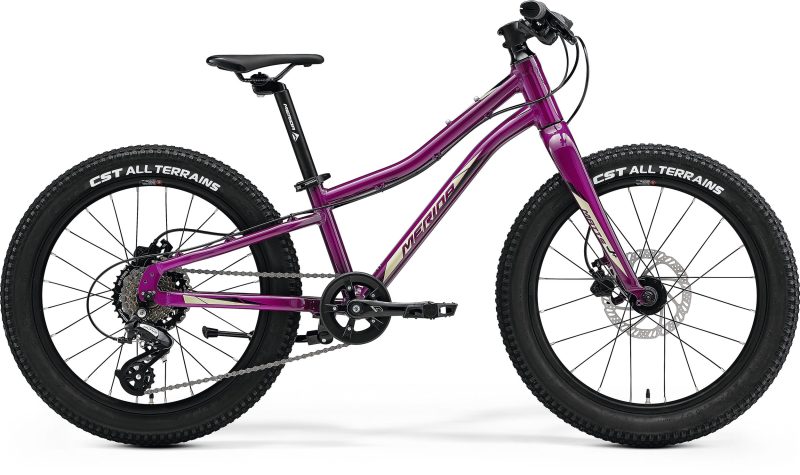

Fat 2.4″ tyres provide plenty of comfort and grip, 7 speeds with rapid-fire shifters keep things simple and Tektro hydraulic disc brakes take care of the stopping. Approx 9.5kg.
It’s all about lightweight for kids; all our bikes have rigid forks as cheap suspension forks tend to work poorly and weigh a lot. We use 1x drivetrains with rapid-fire shifters to keep shifting simple, further reducing the overall weight. All components are as light and child-focused as possible. The flip-flop stem and spacers allow for growth, extending the life of the bike. Suits heights from approx. 109-129 cm.
Specification
Frame: TFS – 6061 aluminium tubing, double butted and technoformed. BSA BB standard, 9mm QR axle standard. Replaceable dropout. Maximum tyre clearance 20″ x 2.4″
Fork: Merida Matts J. 20+; Material: aluminium. Max tyre size: 20″ x 2.4″
Gears: 7
Shifters: Altus
Rear Derailleur: Shimano RD-M310
Bottom Bracket: Cartridge Bearing
Chain: KMC NS8
ChainseT: Merida Expert JR; 28 tooth chainset. Crank length: 127mm
Cassette: Shimano MF-TZ500; 14-34 teeth; 7 speed
Brake Lever: Power DS-100HT
Front Brake: Power DS-100HT 2 piston hydraulic disc brake caliper with 160mm rotor
Rear Brake: Power DS-100HT 2 piston hydraulic disc brake caliper with 140mm rotor
Grip: Merida Expert JR
Handlebar: Merida Expert JR; aluminium; 580mm width; 20mm rise
Stem: Merida Expert CC; aluminium; 31.8mm diameter; -5 degree stem angle – Stem length: 60mm
Head Set: FSA TH888
Pedal: Marwi SP-202
Saddle: Merida Comp JR
Seat Post: Merida CC; aluminium; 30.9mm diameter; in-line
Wheel Size: 20″
Rims: Merida JR 20+; Aluminium
Spokes: Black steel
Front Hub: Joytech D041DSE; 100x9mm; 20 spokes
Rear Hub: Joytech D242TSE; 135x9mm; 24 spokes
Front Tyre: CST Jet C1820; 20″ x 2.4″; wire bead
Rear Tyre: CST Jet C1820; 20″ x2.4″; wire bead
Colour: Purple
Season: 2023
Approx 9.5kg
Merida Bikes
