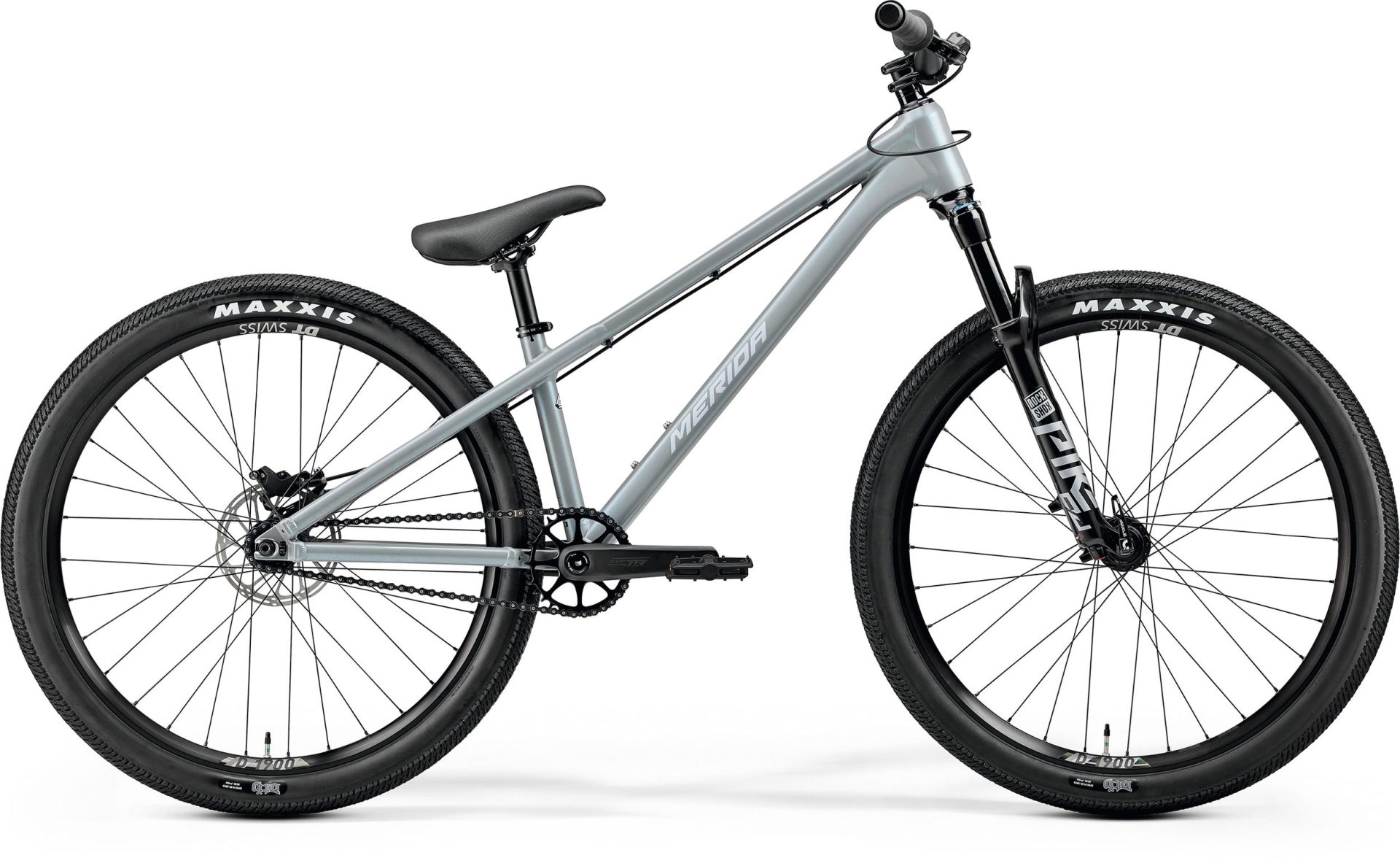

This one is for the serious trail bosses, slopestyle shredders and pump track pinners. A super-tough aluminium frame is paired with some of the best dirt-jump-ready gear on the market, with the benchmark RockShox Pike DJ fork taking the sting out of landings and the robust 26″ DT Swiss wheelset able to take a licking without flinching. We’ve used a controllable hydraulic SRAM four-piston rear brake with a cable-operated front – and the bike is compatible with gyros if barspins and tailwhips are on the menu.

DIRT simple, DIRT tough. Whether you’re pushing for progression on dirt jumps, playing on the pumptrack or just want a bombproof hardtail buddy, the new MERIDA DIRT has you covered. Built for big air, pump tracks, tricks and generally giving it some stick, our new play hardtail has been created to take a beating and come back for more, with a tough but simple singlespeed aluminium frame, 26” wheels and components that can take a kicking on the regular. Designed to round out our gravity-bike range, it’s the perfect playtime partner for riders that want to sharpen up their skills or who want to kick off their dirt-riding career with a tough, more stylish option than a regular MTB hardtail.

frame DIRT TFS
  • material: aluminum
  • 26 wheelsize
  • 135x10mm axle standard
  • BSA bottom bracket standard
frame size M, L
fork Rock Shox Pike DJ
  • Air
  • 100mm suspension travel
  • 15x100mm
  • 26×2.5″ max. wheelsize
  • 40mm fork offset
  • tapered
wheelset DT Swiss D1900
  • 30mm inner width
  • 110x15mmmm width front hub
  • 135x10mm bolt onmm width rear hub
  • 13t
  • tubeless tape ready (tape installed)
front tyre Maxxis DTH
rear tyre Maxxis DTH
crank MERIDA Expert TR II
bottom bracket Samox BSA 24mm EB2401
Cassette 13t singlespeed cog
chain KMC Z1 wide
brakes Tektro MD-M280 / Sram DB4
rotors Tektro TR-160-52 / Sram CenterLine
headset FSA NO.57
Stem MERIDA EXPERT TR II
stem size 40mm
handlebar MERIDA COMP TR
grip MERIDA COMP DR
seat post MERIDA COMP DR
saddle MERIDA COMP DR
seat clamp MERIDA EXPERT
approx. weight 11.0 kg

Geometries

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



Classification

INTENDED USE
CATEGORY 5
FR + DOWNHILL
